Euro-V Rack

Superior Compact Mobility

The Euro-V Rack Case is a robust, standard solution designed for fast deployment. It features a steel rack with an industry-standard square hole pattern (M6), supporting metric-mounted equipment. Available in 9 sizes with 610mm and 760mm depths, it delivers dependable shock protection in a lightweight, durable design.

*All trademarks are registered and/or unregistered trademarks of Peli Products S.L.U., its principal place of business, subsidiaries and/or affiliates.

Peli EURO-V RACK 10U-L 19″ Rack Mount case

Outside dimensions (l,w,h):
1176 X 627 X 611 mm
Inside dimensions (l,w,h):
970 X 483 X 450 mm

Peli EURO-V RACK 4U 19″ Rack Mount case

Outside dimensions (l,w,h):
991 X 627 X 345 mm
Inside dimensions (l,w,h):
610 X 483 X 267 mm

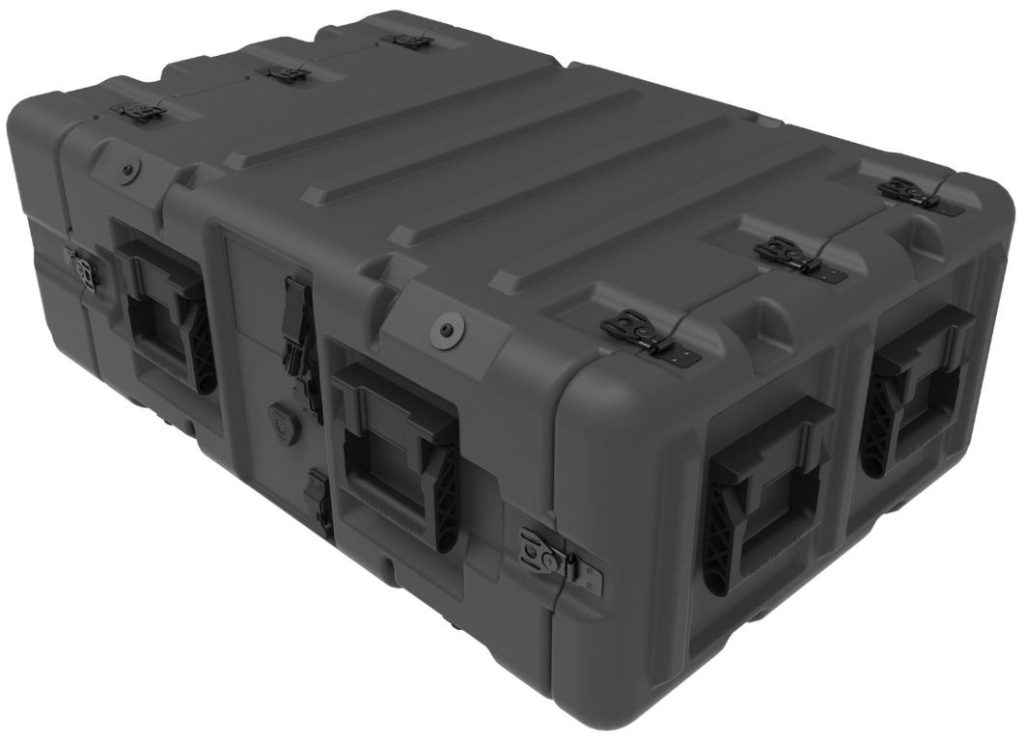

Peli EURO-V RACK 4U-L 19″ Rack Mount case

Outside dimensions (l,w,h):
1143 X 627 X 345 mm
Inside dimensions (l,w,h):
932 X 483 X 180 mm

Peli EURO-V RACK 5U-L 19″ Rack Mount case

Outside dimensions (l,w,h):
1143 X 627 X 389 mm
Inside dimensions (l,w,h):
932 X 483 X 225 mm

Peli EURO-V RACK 6U-L 19″ Rack Mount case

Outside dimensions (l,w,h):
1143 X 627 X 443 mm
Inside dimensions (l,w,h):
932 X 483 X 270 mm

Peli EURO-V RACK 7U-L 19″ Rack Mount case

Outside dimensions (l,w,h):
1143 X 627 X 478 mm
Inside dimensions (l,w,h):
932 X 483 X 315 mm

Peli EURO-V RACK 7U-S 19″ Rack Mount case

Outside dimensions (l,w,h):
991 X 627 X 478 mm
Inside dimensions (l,w,h):
780 X 483 X 315 mm

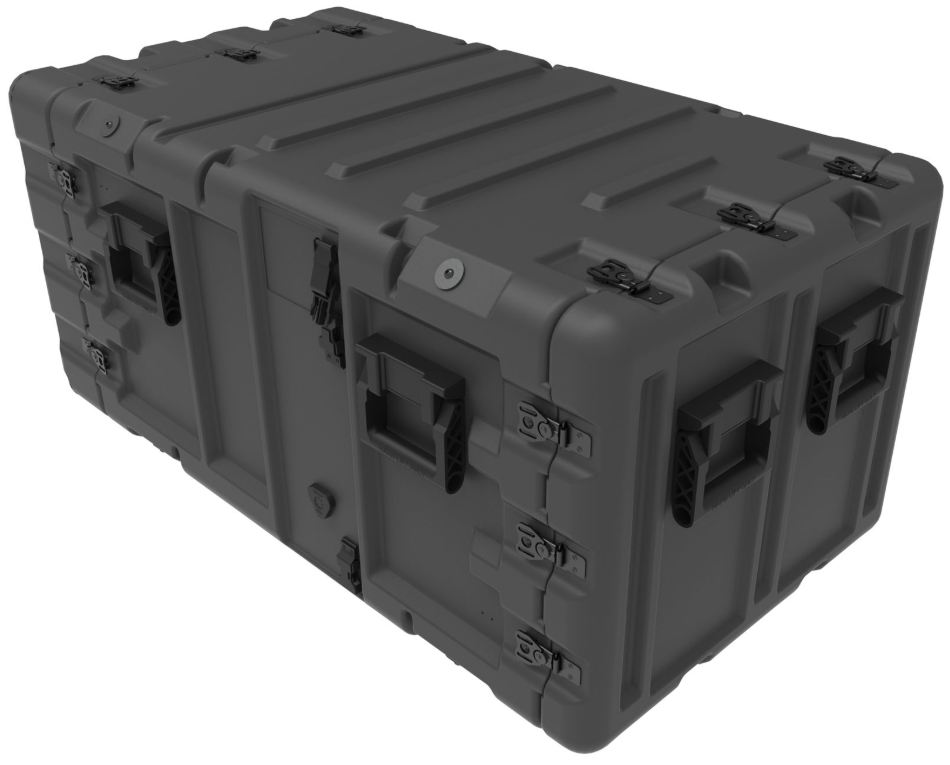

Peli EURO-V RACK 8U-L 19″ Rack Mount case

Outside dimensions (l,w,h):
1143 X 627 X 522 mm
Inside dimensions (l,w,h):
932 X 483 X 360 mm

Peli EURO-V RACK 9U-S 19″ Rack Mount case

Outside dimensions (l,w,h):
991 X 627 X 567 mm
Inside dimensions (l,w,h):
780 X 483 X 405 mm

Manufactured in Germany, Euro-V cases offer reduced lead times—ideal for time-sensitive operations without compromising performance.

Base Features:

Case Colour: Black

8 Black Plastic Handles

Steel Square Hole Rack Frame

Pressure Equalisation Device and Closed Loop Gasket

Lid Hangers and Coupling Catches

Moulded in Stacking Ribs

Standard with edge casters

2″ front lid and 5” back lid standard

Applications:

»Military Rapid Deployment

»Precision Lab and test Equipment

»Aerospace Instrumentation

»Control Consoles/Panels

»Radar/ Microwave Antennas

»Solid State Electronics

»Communications Equipment

»Field-Deployed Applications

»Medical and Biological Diagnostic Devices

»Flight Simulators
